SPECIFICATIONS

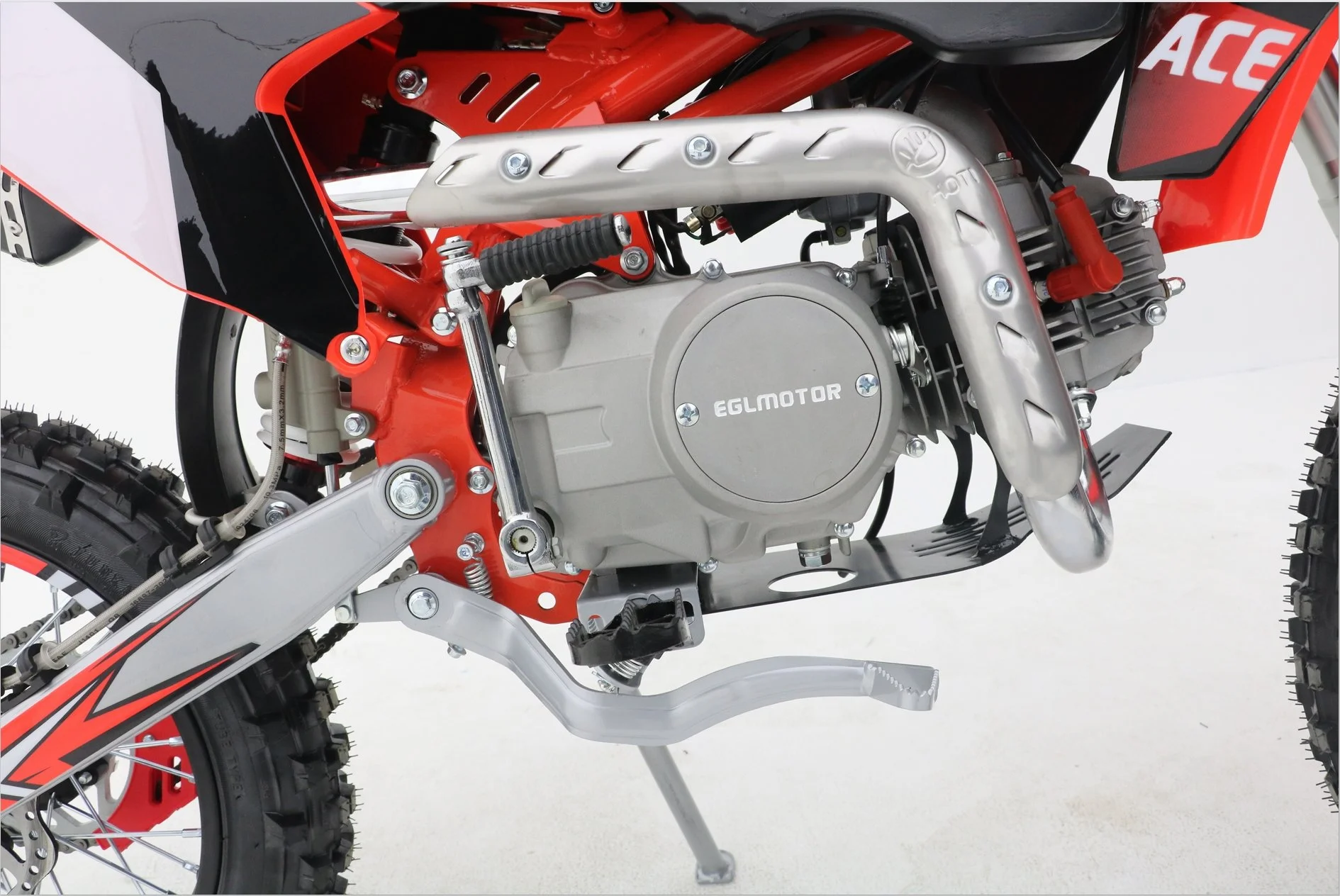

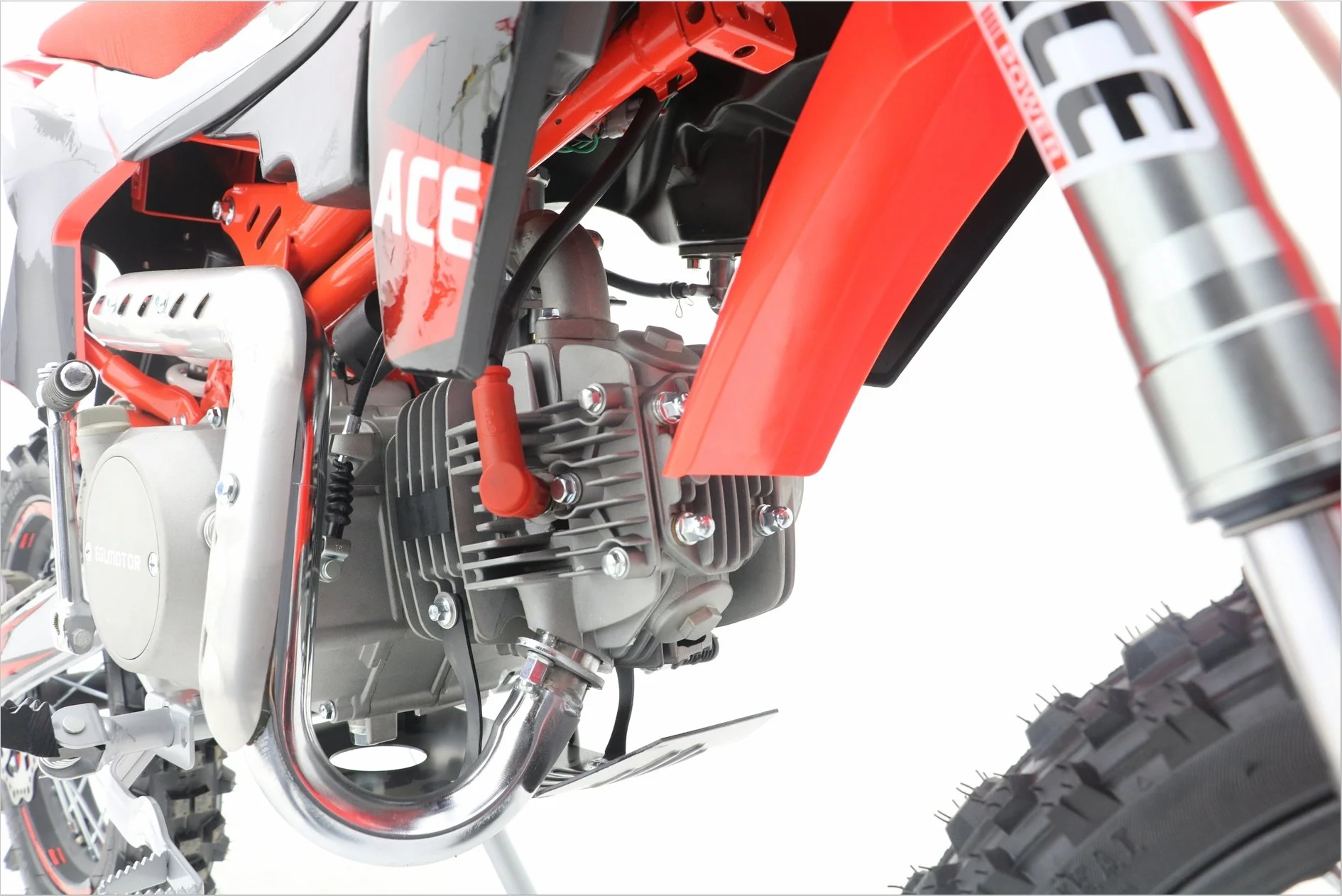

ENGINE

Displacement（ml） 125cc

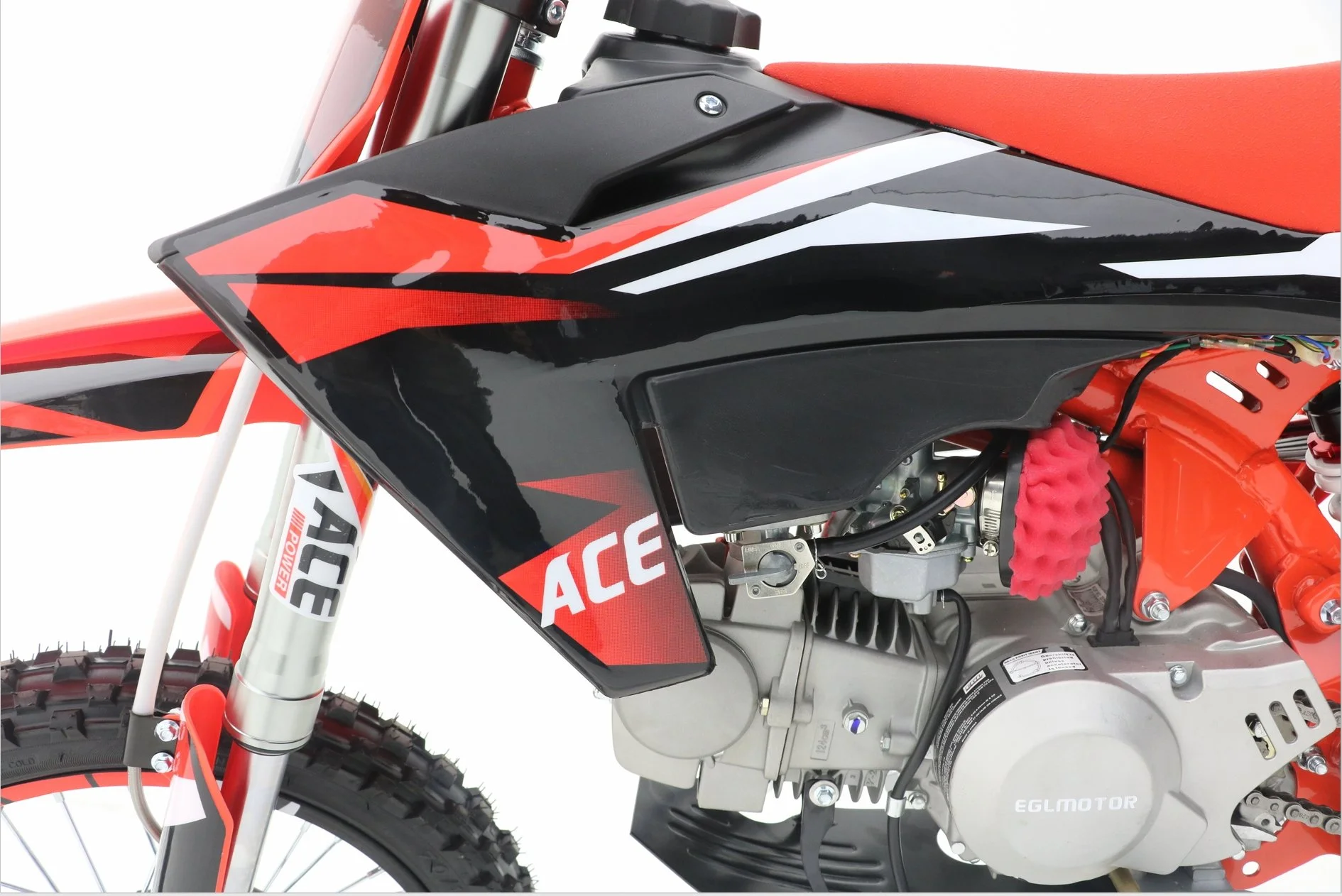

Engine Type single cylinder, four stroke, oil cooling, overhead cam

Bore x Stroke 54×54

Compression Ratio 9.0:1

Fuel Delivery carburetor

Ignition CDI

Transmission Foot shift

Final Drive Chain drive

Drive Sprocket 14T

Clutch Type Wet multi-plate clutch

Maximum Power（KW（r/min）） 6.3/7500

Maximum Torque（N.m（r/min）） 8.8/5000

Maximum Speed（km/h） 80

Idle Speed（RPM） 1500±100

Fuel type 92#

Valve Mechanism Overhead cam

Lubrication Method Splash lubrication

Lubricant Type SF 15W/40

Valve Clearance (cold) 0.02-0.04

Decompression Clearance 0.06-0.12

Spark Plug A7TC

Primary Adjustment ratio 3.722(67/18)

Transmission Ratio 1ST 3.273(36/11)

Transmission Ratio 2ND 1.938(31/16)

Transmission Ratio 3RD 1.353(23/17)

Transmission Ratio 4TH 1.050(21/20)

CHASSIS

Chassis Type Integrated frame

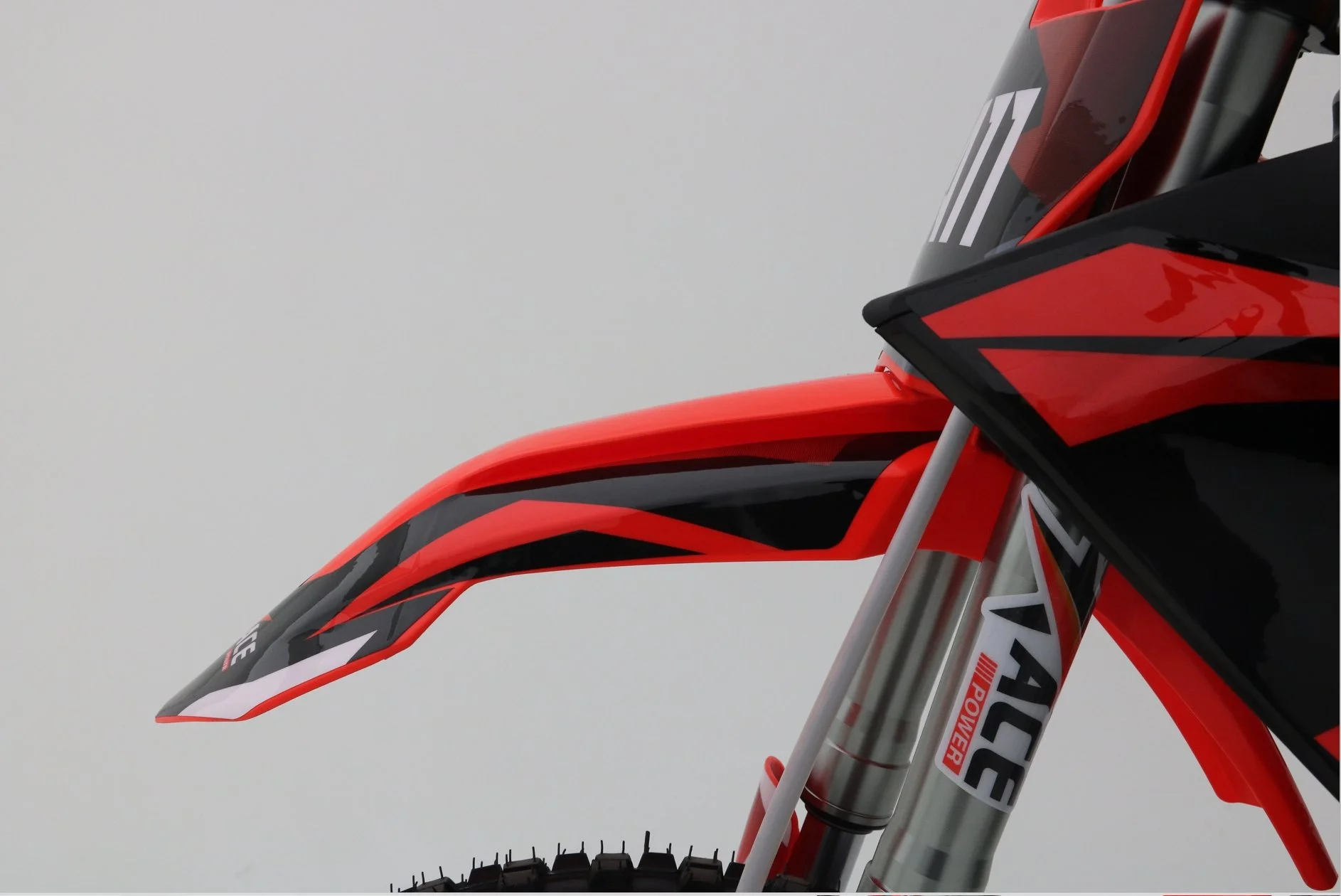

Suspension/Front Inverted non-adjustable shock absorber, upper 45, lower 48, L=735mm, 15-axle hole

Suspension/Rear Non-adjustable spring shock absorber L=280mm Φ11 spring 8 sections

Brakes/Front Single piston caliper, brake disc 220mm

Brakes/Rear Single piston caliper, brake disc 190mm

Tires/Front 70/100-17 off-road tire

Tires/Rear 70/100-14 off-road tire

Rim/Front Aluminum hub core/iron steel rim

Rim/Rear Aluminum hub core/iron steel rim

DIMENSIONS

Product Size LxWxH（mm） 1770*760*1080

Seat Height（mm） 810

Wheelbase（mm） 1220

Min. Ground Clearance 350

Fuel Capacity 4.5

Min. Fuel Consumption ≤367

Dry Weight 65

Wet Weight 75

Battery 12v 4Ah
