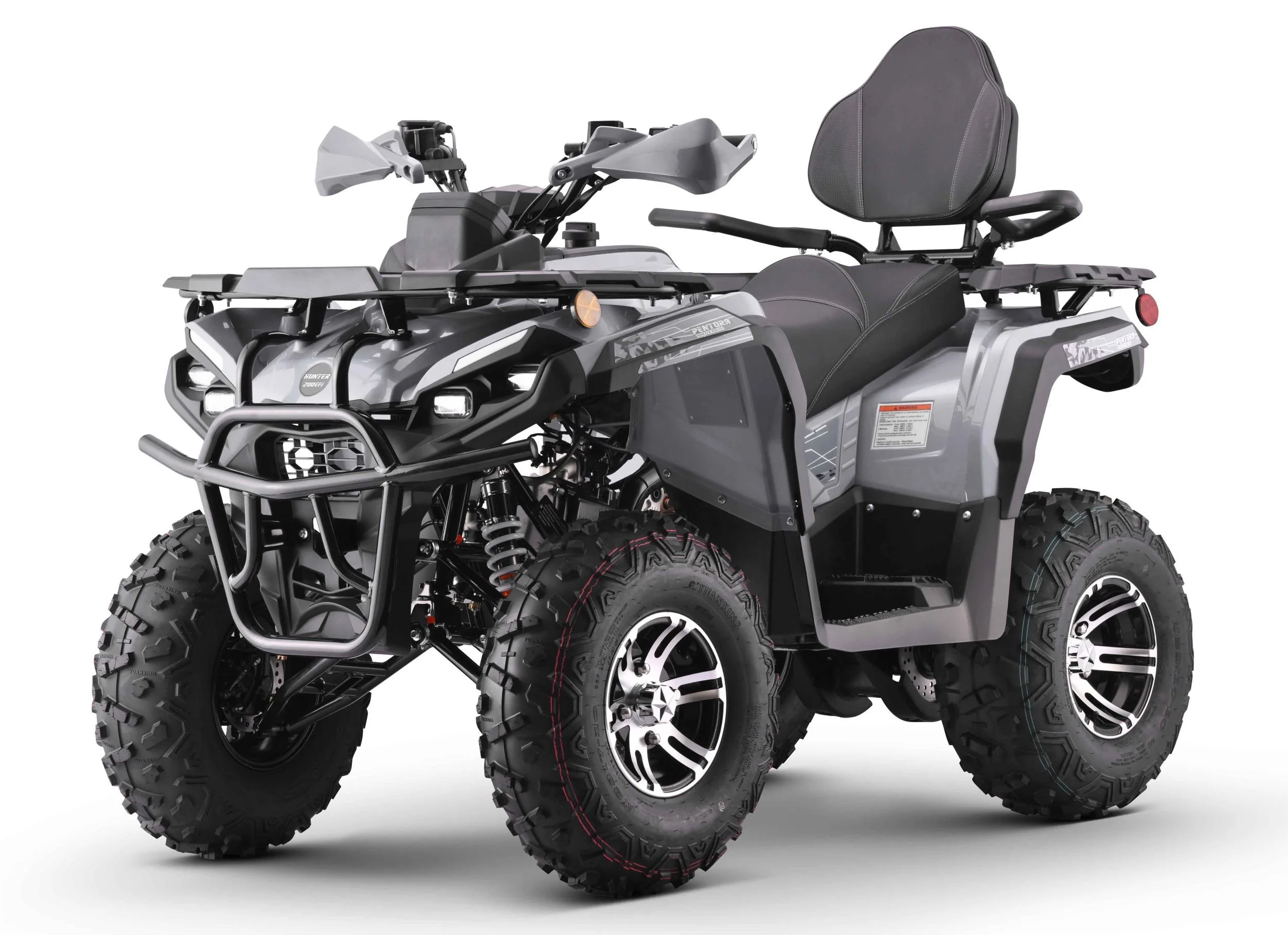

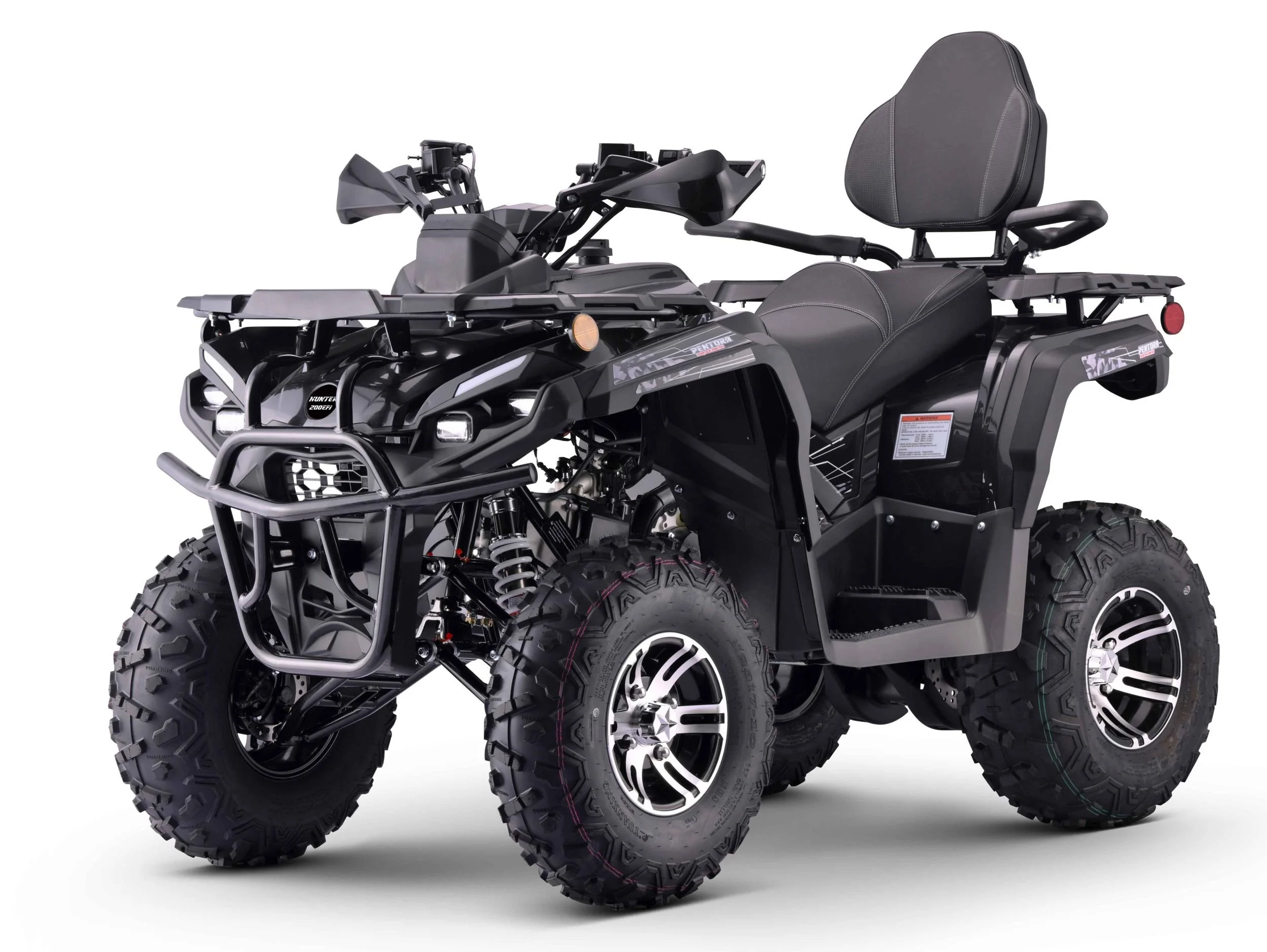

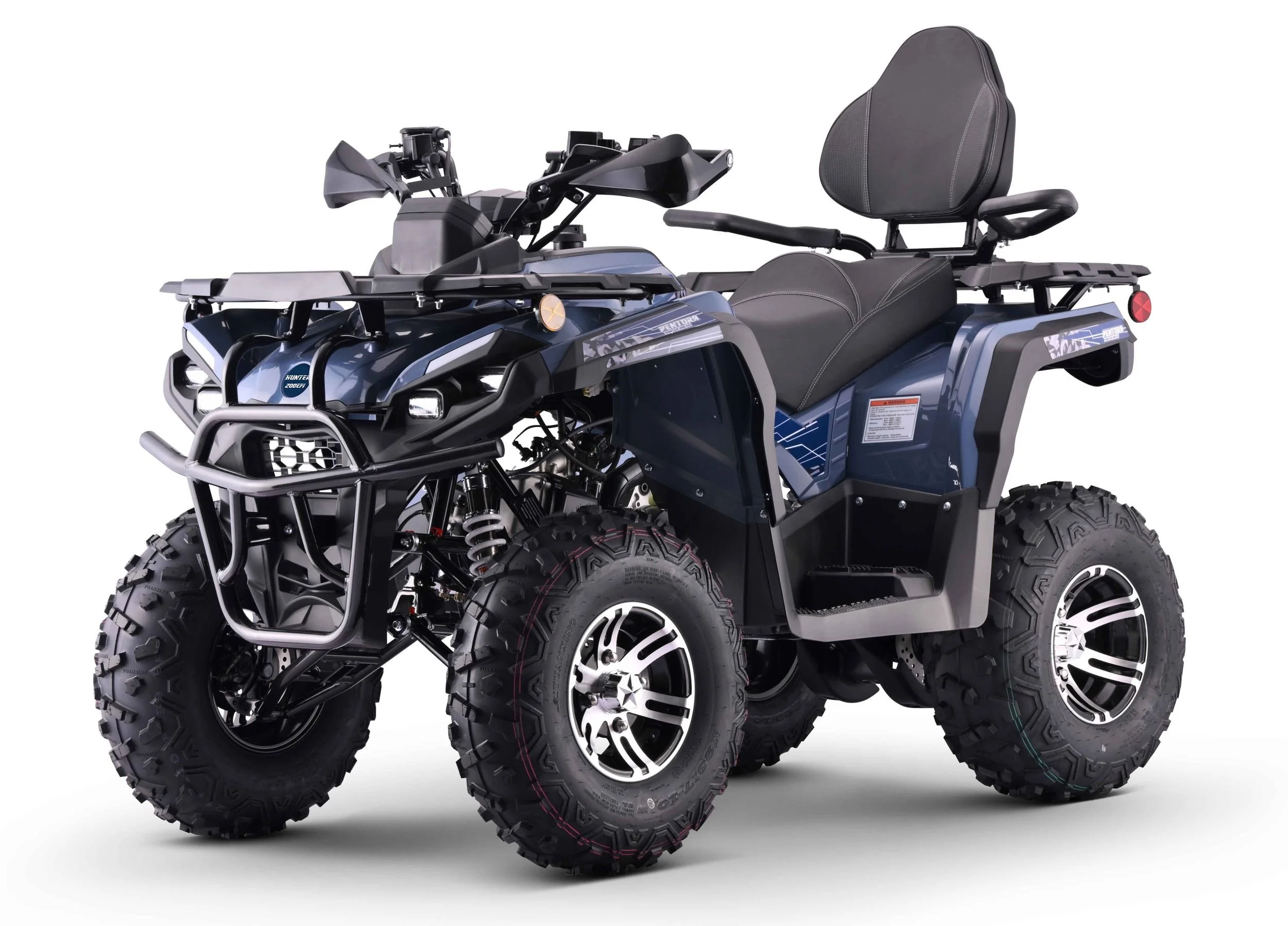

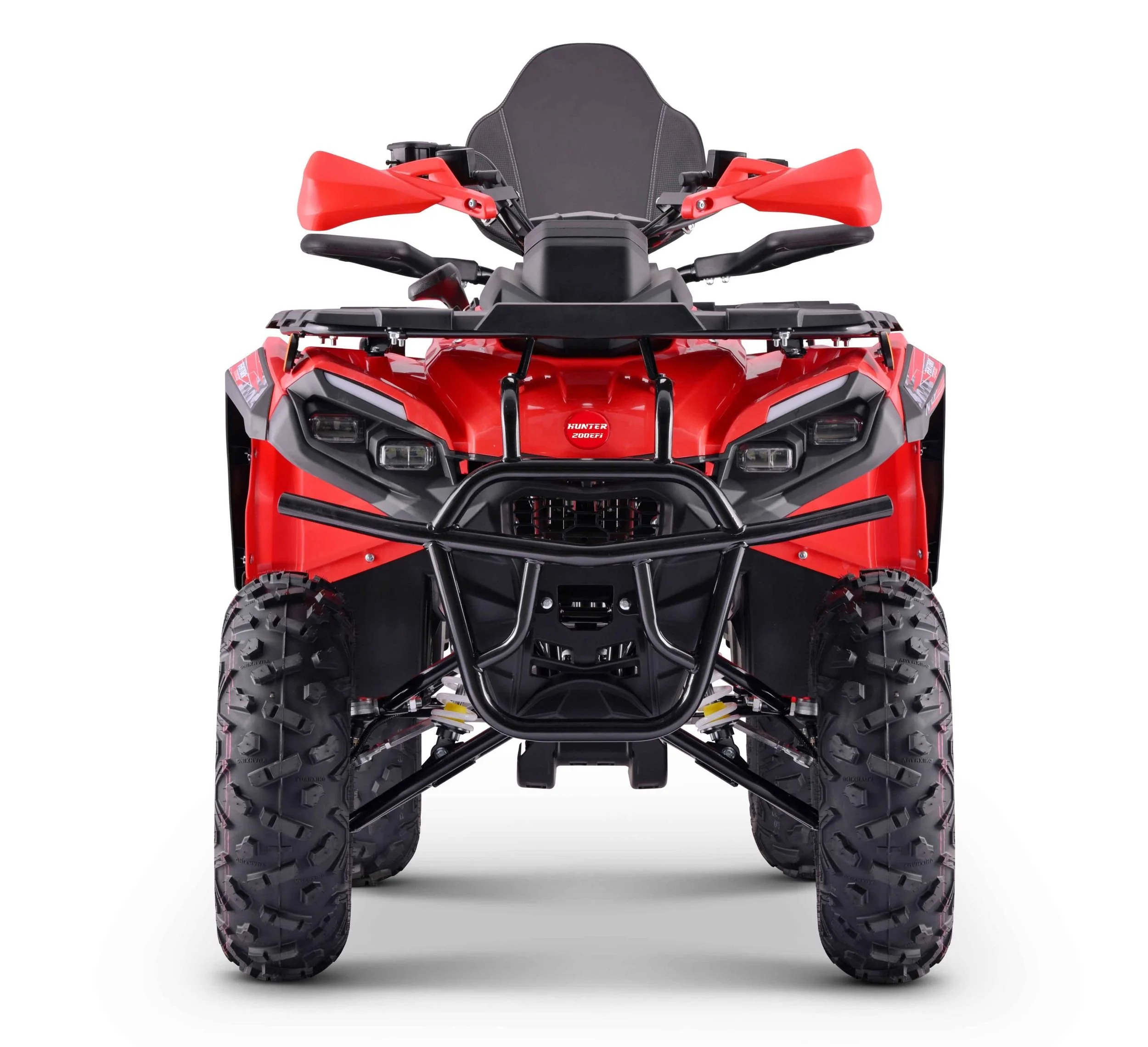

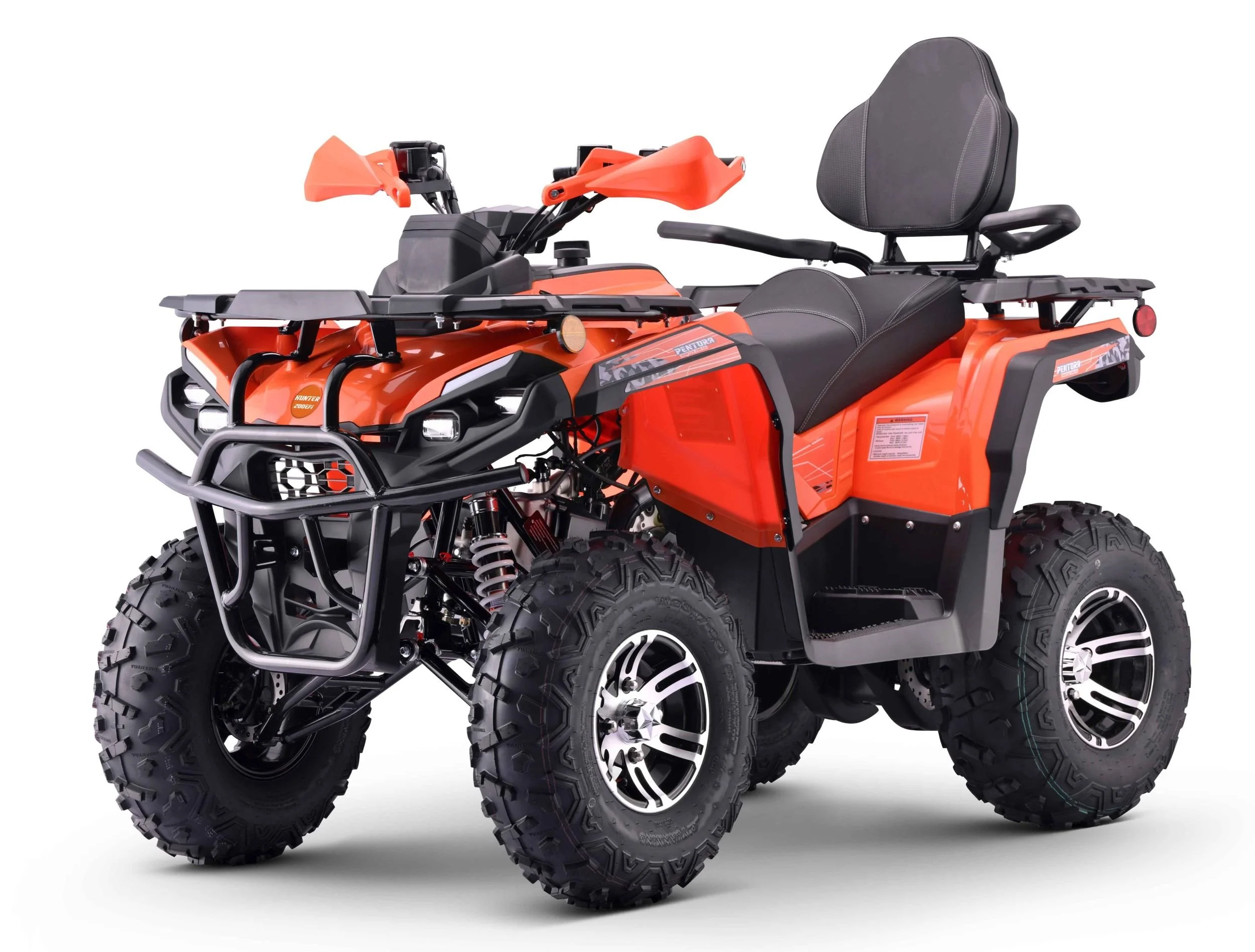

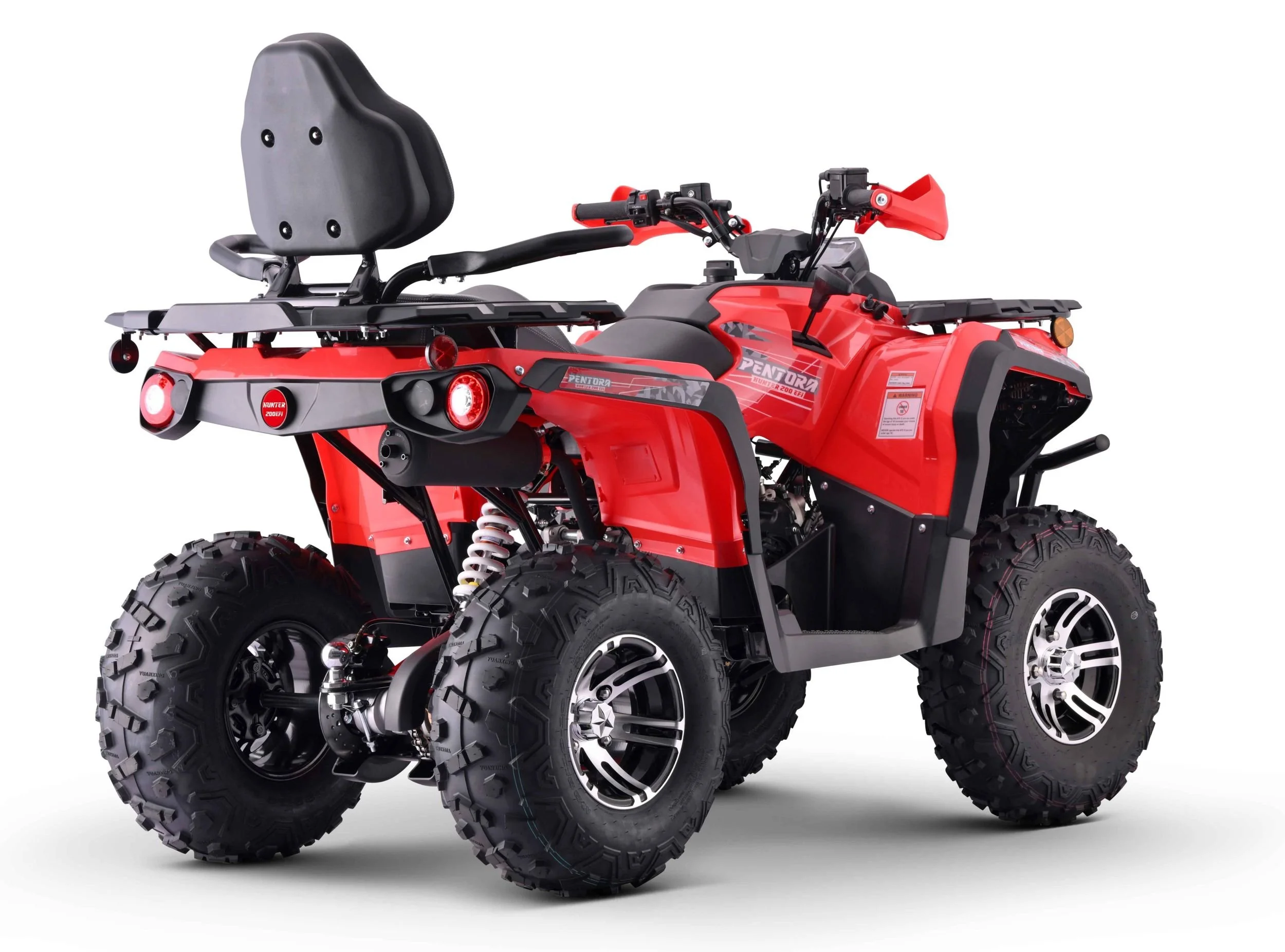

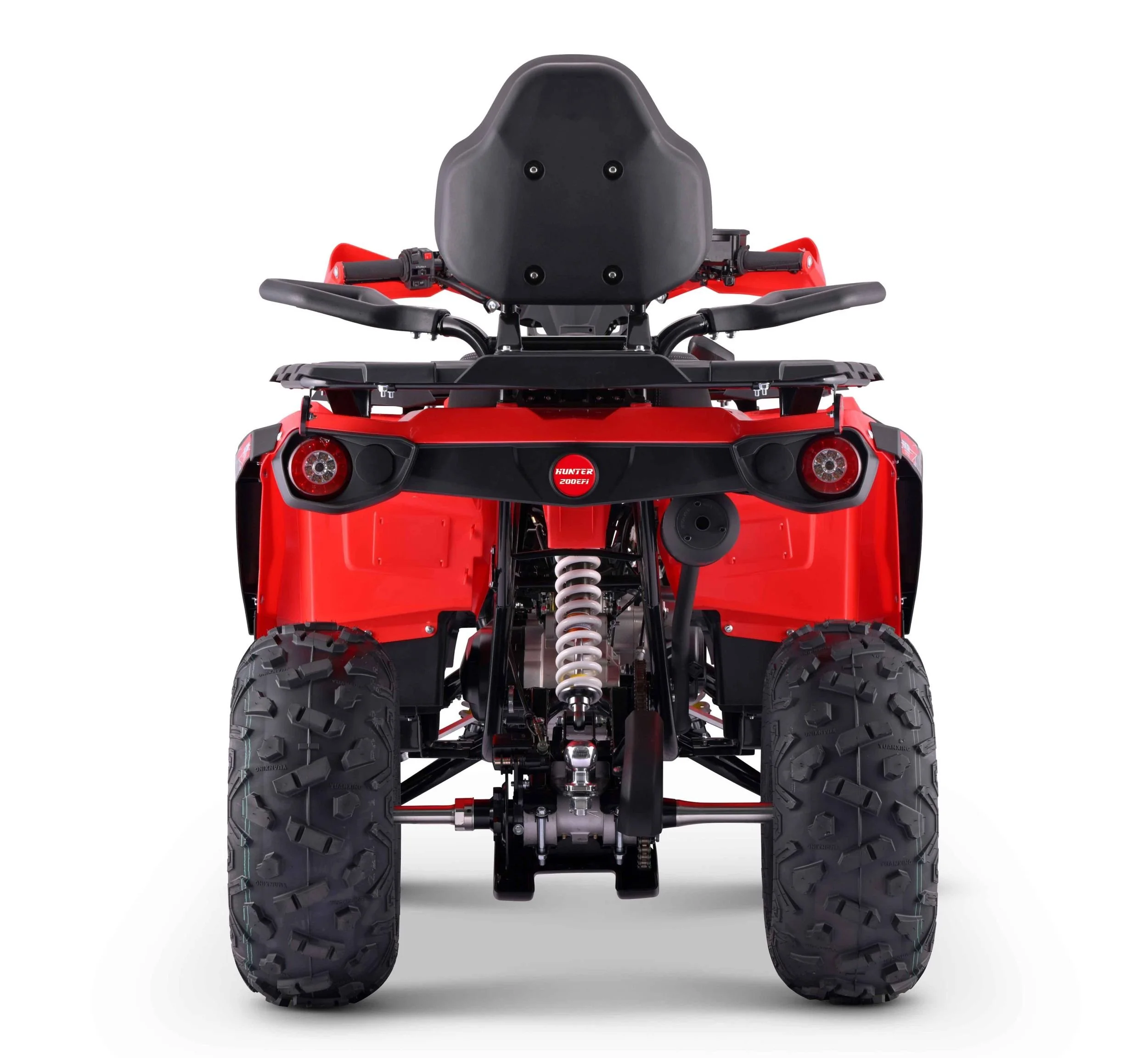

PENTORA HUNTER 200 EFI

• LONG BASE - 2 SEATER ATV

• HYDRAULIC DAMPER

• DIGITAL SPEEDOMETER

SPECIFICATIONS

Vehicle Size ‍ ‍1860*1050*1340

Wheelbase 1210±20mm

Front wheel spacing 810mm

Rear wheel tread 800mm

Minimum ground clearance 265±15mm

SEAT HEIGHT 835±15mm

CHASSIS HEIGHT 295mm

HANDLE HEIGHT 1120mm

Package size, l × w × H 1950*1130*820mm 36/40H

Front mechanical hitch travel 75

Rear mechanical hitch travel 90

Minimum turning diameter 3400±500mm

Steering angle <45° （actual39°）

Sides lip <5m/km

Rated load mass 100kg

net weight 197kg

Gross weight of packing 225kg

Brake type (front / rear) Front and rear hydraulic brake

Brake control mode (front / rear) Front hand brake and rear foot brake

Rim type (front / rear) 10寸

Tire size (front / rear) 21*7-10/22*10-10

Tyre pressure (front / rear) 9P.S.I

Transmission mode Chain

Engine Model JN1P63QMK

Type Four stroke, oil cooling + forced air cooling, balance shaft, horizontal

Production unit Juneng

Bore x stroke 62.5 ㎜*57.4 ㎜

cylinder 177.3ml

Compression ratio 10：1

Rated power and corresponding speed 7kW/7000r/min

Maximum power and corresponding speed 7.3kW/7500r/min

Maximum torque and corresponding speed 10N·m/6000r/min

Minimum no-load stable speed 1700±100r/min

Minimum fuel consumption rate 367g/kW·h

Fuel grade 93#

Lubrication mode Pressure and splash mixed lubrication

Brand of lubricating oil SAE 80W/90SF class SAE 15W / 40 (crankcase) gearbox: SAE 80W / 90

Clutch type Automatic centrifugal dry

Starting mode E-start

Ignition mode C.D.I

Chemical / injector model or type Injection

Spark plug model or type C7HAS（NGK）、A7T or A7RT

Battery 12V，9HA

Headlamp model or type 12V 55-55W

Maximum speed 60km/h

Starting performance 15S

Braking performance ≤5.9m/30m/km/h

F/ wheel force ≥60%

F/ wheel force differential ≤20%

R/ wheel force ≥55%

R/ wheel force differential ≤24%

climbing performance 21°

Parking performance ≥18%

Emission index CO(%) ≤2

HC(PPm) ≤250

Maximum noise dB (A) ≤82 dB(A)

Starting acceleration performance (s) ≤18

Beyond acceleration (s) ≤15

Tank volume 9.7L

Front / rear shock absorber type Hydraulic damper

Type of exhaust muffler Tube type impedance composite muffler

Front /rear shock absorption length 345mm/350mm
